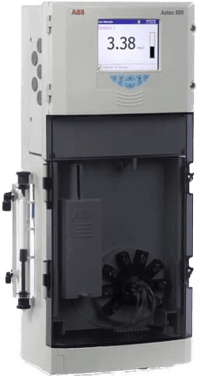

Images are representations only.

AW63352101021

Series: Aztec AW633 Iron Analyzer Brand: ABB Group
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Range - 0 to 5.000 ppm
  • Number of Streams - Measuring 1 Stream with Additional Valve for Cleaning
  • Communication - Profibus DP V1.0
  • Enclosure - Standard
  • Power Supply - 18 to 36 Vdc
  • Manual - French
  • Certification - Certificate of Calibration

Specifications

Brand

Measurement Range

  • 0 to 5 ppm Fe (0 to 5 mg/L)

Accuracy / Maximum Measured Error

  • ± 5 % of Reading or ± 0.005 ppm, whichever is greater

Repeatability

  • ± 5 % of Reading or ± 0.005 ppm, whichever is greater

Resolution

  • 0.001 ppm or 1 ppb

Calibration

  • 2-Point, Automatic Calibration

Operating Temperature

  • 5° to 45° C (41° to 113° F)

Sample Temperature

  • 1° to 40° C (32° to 104° F)

Sample Pressure

  • 5 psi Max.

Flow Rate

  • Sample: Continuous 200 to 500 mL/min

Display

  • Color, TFT, LCD with built-in backlight and brightness Adjustment

Environmental Protection

  • IP 31

Power Supply

  • 18-36 Vdc optional
  • 100-240 Vac Max. 50/60 Hz ± 10 %

Power Consumption

  • 100 W Max. - DC
  • 75 W Max. - AC

Materials of Construction

  • Door: Acrylic
  • Lower Tray: 20 % Glass-loaded Polypropylene
  • Main Enclosure: Noryl
  • Electronics Enclosure: 10 % Glass-loaded Polycarbonate

Communication

  • PROFIBUS DP V1.0

Certifications & Approvals

  • CE
  • cULus Listed
  • EMC
  • LV Directives
