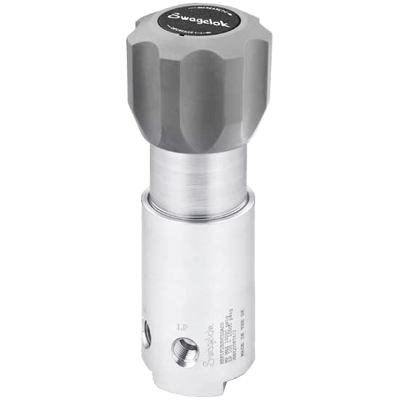

KHP Series High Pressure Regulator
Brand: Swagelok CompanyThe KHP series provides control of supply pressures up to 10 000 psig (689 bar). The self-venting capability enables downstream pressure reduction in closed-loop systems.
Features- Thrust roller bearing eases operation
- Panel-mounting configuration available
- High-flow, dual-gauze type filter positively retained in inlet port
- Maximum Inlet Pressure: psig: 10,000 (bar: 689, kPa: 68,950)
- Pressure Control Range: psig: 0 to 500 (bar: 0 to 34.5, kPa: 0 to 3,447) through psig: 100 to 10,000 (bar: 6.89 to 689, kPa: 689 to 68,950)
- Maximum Operating Temperature:
- 100°C (212°F)
- Process Connection: 1/4" Female NPT
- Actuator: Knob
- Materials of Construction:
- Enclosure: 316 Stainless Steel
- Piston: 316 Stainless Steel
- Poppet: S17400 Stainless Steel
- Seat: PEEK
- Seal: Fluorocarbon
Specifications
Brand
Actuator Type
- Knob
Enclosure, Body Material
- 316 Stainless Steel
Filter
- 316 Stainless Steel
- Filter, 25 μm
Flow Rate
- 0.06 Cv
- 0.25 Cv
Media
- Gas
Mounting
- None
- Panel
NPT Connection
- 1/4" NPT Female
Piston Material
- 316 Stainless Steel
Piston Seal Material
- PTFE
Poppet Material
- S17400 Stainless Steel
Pressure Range
- bar: 0 to 689
- kPa: 0 to 68,947
- psig: 0 to 10,000
Process Temperature
- 100° C (212° F)
Relief
- High Flow
Seat / Seal Material
- Fluorocarbon (FKM)
- PEEK
Special Cleaning & Packaging
- ASTM G93 Level E-Cleaned
Stem Material
- CZ114 Bronze
Supply Pressure - Maximum
- bar: 689
- kPa: 68,947
- psig: 10,000
Supply Pressure Effect
- 1 to 14.6 %
Vent
- Non-Venting
- Self-Venting
