Images are representations only.

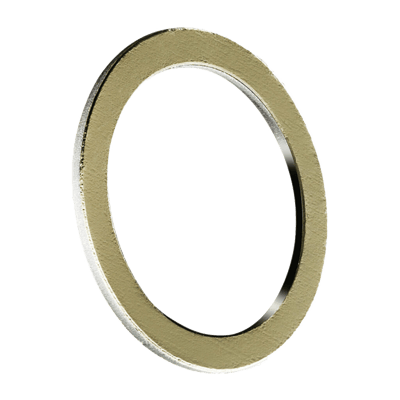

Thermiculite® 845 Flexpro™ Kammprofile
Brand: Flexitallic LtdThermiculite® 845 is a high temperature facing material for Flexpro™ kammprofile gaskets.
Flexpro™ 845 consists of a serrated metal core onto which is bonded a vermiculite based sealing face.
The metallic core provides gasket rigidity and blow-out resistance while the soft Thermiculite 845® facing provides exceptional sealing performance.
Styles: Flexpro™ gaskets are available in several styles with various serration profiles.
- Style PN – Sealing element only
- Style ZG – Sealing element with integrated outer ring
- Style ZA – Sealing element with loose outer ring
Specifications
Brand
Approval
- TA Luft
Flange Face
- Flat, Male and Female, Raised, Tongue and Groove
Maximum Temperature
- 982° C / 1799.6° F
Minimum Temperature
- -240° C / -400° F
Pressure
- 431 Bars / 6251.14 PSI
Pressure Class
- 150, 300, 600, 1500, 2500, 400, 900
Pressure Rating
- PN 10, PN 16, PN 25, PN 40, PN 64, PN 100, PN 160, PN 250
