HON 907

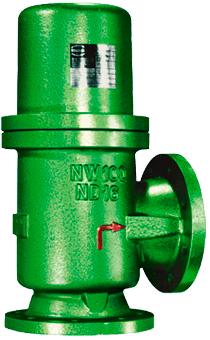

Brand: Honeywell International IncHoneywells HON 907 is an angular cellular gas filter according to DIN 3386.
It is ideal for use at distribution stations as well as power plants and industrial facilities.
What Is It?
Features include:
- Compact design
- High filtration efficiency
- Low pressure loss Δp
- Exchangeable filter insert
- Easy cleaning and environmentally friendly disposal of filter mesh
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 16 bar
- Max. operating pressure pmax: up to 16 bar
- Max. flow velocity for sizing: up to 20 m/s max.
- pressure drop Δp: 50 mbar (for clean filter)
- Limit for soiled filter insertpmax: 500 mbar
- Filter material: Pleated special paper in three grades (10 μm, 4 μm and 2 μm)
- Connection: DIN flange PN 16 (cast aluminium body) in DN 25, DN 50, DN 80, DN 100
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
