HPHT Pump

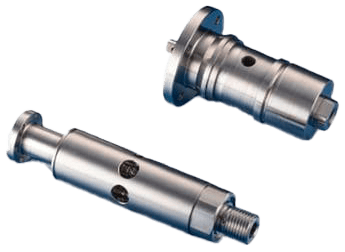

Brand: The Lee CompanyLee HPHT Pumps are a new family of high pressure, high temperature pumps that can generate up to 10,000 psid at 400° F. The innovative axial piston design of Lee HPHT Pumps eliminates the use of elastomers, increases resistance to contamination, and dramatically improves reliability.
Lee HPHT Pumps have been qualified for over 1,000 hours of operation and designed to withstand high levels of shock and vibration.
They are available in 22 mm and 30 mm diameter envelopes for packaging flexibility and ideally suited for the extreme environments and limited space found down hole.
Features- 400° F temperature rating
- 10,000 psid pressure rating
- No elastomeric seals
- Increased contamination resistance
- Qualified to 1,000 hours
- 100% tested and inspected
- Accessories including couplings, flanges, and adaptor plates are available
- Wetted materials: 300 series stainless, 400 series stainless, alloy steel, 17-4, 17-7, A2, and aluminum bronze
Displaying prices & availability for Ohio, United States in USD. Change location.
Models matching criteria: 2
HPHT Pump
Out of Stock
Does not ship to OH, United States
HPHT Pump
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Operating Pressure
- Max 10,000 psi (690 bar)
Maximum Temperature
- 400° F (200° C)
Speed Range
- 100 to 6,500 RPM
Displacement
- 45 mm3/ Revolution
Direction of Rotation
- Clockwise (From The Shaft End)
Wetted Material
- 300 Series Stainless
- 400 Series Stainless
- Alloy Steel
- 17-4, 17-7, A2, and Aluminum Bronze
