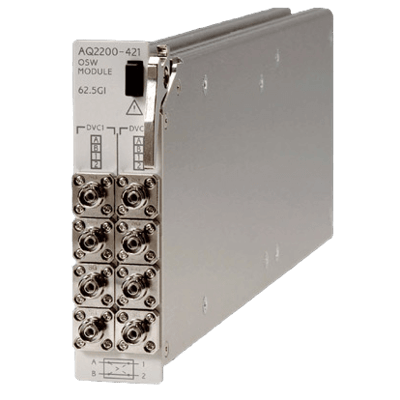

The AQ2200-421 OSW module features two optical switches with low insertion loss and superior switching reproducibility, in a one-slot size module, and allows selection of 1 x 2 or 2 x 2 port configuration according to the application.
Moreover, the optical fiber type can also be selected between SMF(10/125 µm) and MMF(50/125 µm, 62.5/125 µm), allowing a wide range of measuring systems to be built corresponding to the systems or devices used in optical public networks or optical LANs.
Features- Compact: Optical switches of 1 x 2 or 2 x 2 port configuration in a one-slot size module
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typ.)
- High switching reproducibility: within ±0.01 dB
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems
