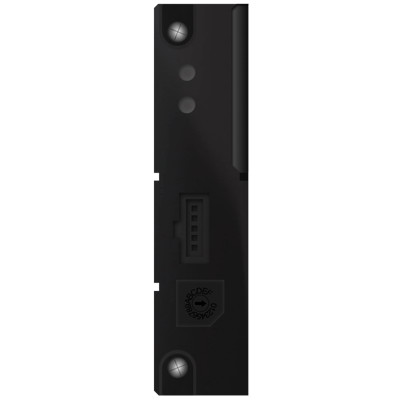

DSC2 Communication Interface Card
Brand: Yokogawa Electric CorporationThe DSC2 is a communication interface card that is used by installing to the dedicated slot of the nest for D series signal conditioners.
It has a RS-485 communication port, for relaying communication data of the D series and Yokogawa Field Instruments to a host computer.
Features- The communications protocol can be switched between “DSC2 upper-level communication protocol” and “BRAIN protocol”
- Using the DSC2 upper-level communication protocol, the user can make an application program on PC to communicate with D series signal conditioners
- DSC2 constantly scans output values of the signal conditioner of each slot, and sends the data of 16 slots at once when read-out command comes from the host computer (scanning time: within 1 second for the data of 16 slots)
- A communication connector for handy terminals on the front panel enables the communication between JHT200 and a signal conditioner of any slot in the nest
Specifications
Communication
- 2-Wire Half-Duplex - Transmission System
- Baud Rate: 9600, 4800, 2400, 1200, 600 bit/sec
- BRAIN Communication Protocol
- Data Length: 8-bits (Fixed)
- DSC2 Upper-level Communication
- RS-232C, RS-485
Consumption
- 100 mA - Current Consumption
Distance
- Maximum
Humidity
- 5 to 90 % RH, Non-Condensing
Indication
- LED
Mounting
- Nest-Mounting
Operating Temperature
- 0° to 50° C (32° to 122° F)
Supply Voltage
- 24 Vdc ± 10 % (Ripple Content 5 % Peak-to-Peak or Less)
