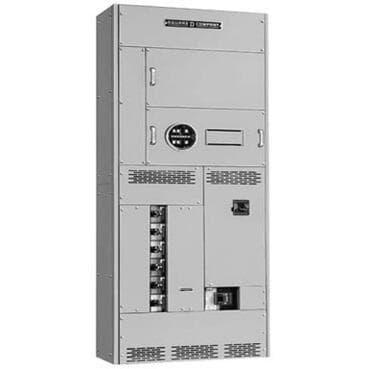

Speed-D Merchandised Service Section LV Switchboards

Designed for the EUSERC market, these switchboards offer a compact footprint, short lead time, and cost-effective solution for service entrance applications rated 400-800A.

Available in standard or solar-ready configurations.

Features

Ready-to-Install merchandise offering, available from an authorized Schneider Electric distributor or warehouse stock. Some sections are factory assembled only.
Hot sequence utility compartment per EUSERC requirements
Suitable for use as service entrance equipment, in either circuit breaker or fusible designs
UL Listed
Mains rating 400, 600, or 800A
Thermal magnetic or electronic trip circuit breakers
Voltage: 120/240, 208Y/120, 240/120, or 480Y/277 Vac
Systems: 1Ø3W or 3Ø4W
Maximum SCCR 200 kA fusible, 100 kA circuit breaker
Solar-ready capability
NEMA Type 1 or Type 3R enclosures
Full height add-on or stand-alone distribution section
Distribution interiors in either NQ lighting (240 Vac) or I-Line power (480 Vac) platforms
