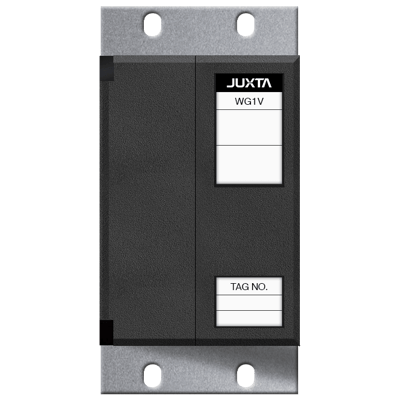

Images are representations only.
WH9A/WH9V Linearizer
Brand: Yokogawa Electric Corporation
The WH9A/WH9V is a compact, front terminal connection type isolator that receives non-linear signals generated by analyzers or sound level meters, and converts them into linear DC current or DC voltage signals.
Features- Zero/span adjustment, input/output monitoring, can be made using the optional parameter setting tool (VJ77) or handy terminal (JHT200)
- Dual output and 2,000 Vac withstand voltage specifications are available
Specifications
Accuracy
- ± 0.1 % of Span
- ± 0.2 % Relative Error between Output 1 & 2 - Dual Output
Consumption
- 5 VA at 100 Vac - Power Consumption (WH9V)
- 50 mA at 24 Vdc - Current Consumption (WH9V)
- 85 mA at 24 Vdc - Current Consumption (WH9A)
- 9 VA at 100 Vac - Power Consumption (WH9A)
Electrical Connectors
- M4 Screw Terminal
Enclosure, Body Material
- ABS Resin
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity
Input
- ± 9 Vdc or Less - Max.
Input Signal
- 1-5 Vdc (Non-Linear)
Insulation Resistance
- 100 MΩ or more at 500 Vdc
Mounting
- DIN Rail Mounting
- M4 Screw x 4
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-100 mVdc
- 0-24 mA DC
- 10 mV to 20 V - Span (DC)
- -10 to 10 Vdc
- 1-24 mA DC - Span
Power Supply
- 24 Vdc ± 10 % - DC Drive
- 85-264 Vac, 47 to 63 Hz - AC Drive
Power Supply Effect
- ± 0.1 % of Span or Less for Fluctuation within the Operating Range of Power Supply Voltage Specification - Effect of Power Supply Voltage Fluctuations
Resistance
- 1 MΩ During Power-On - Input Resistance
- 100 kΩ During Power Off - Input Resistance
- 2 to 250 kΩ or more - DC Voltage Allowable Load Resistance
- 750 to 15,000 ohms or Less - DC Current Allowable Load Resistance
Response Time
- 200 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- ± 1 % - Input Adjustment
- 90 to 110 % - Output Adjustment
Supply Voltage
- 1,500 Vac/minute Withstand Voltage for AC & DC Drive
- 500 Vac/minute Withstand Voltage for DC Drive
Temperature Effect
- ± 0.2 % of Span or Less for a Temperature Change of 10° C (18° F) - Effect of Ambient Temperature Change
Zero Offset
- 0 to 200 % - Zero Elevation (Output Current Signal)
- -100 to 200 % - Zero Elevation (Output Voltage Signal)
