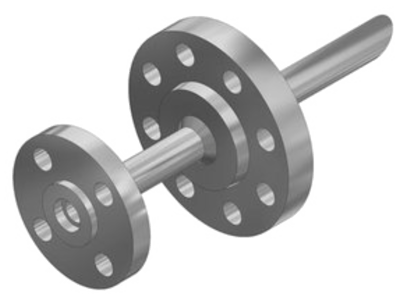

AQ02 - Pipe Quill with Flange by Flange

Brand: Aircom Instrumentation Ltd
Request Information

Quill Material: 316/L Stainless Steel, A105 Carbon Steel, A350 LF2 Carbon Steel, Hastelloy C276, Other - Consult Factory

Quill Pipe Size: 1/2" to 1-4" Sch 80 or Sch 160, Other - Consult Factory

Piping Connection Flange Size: 1/2" to 4"

Piping Connection Flange Rating: Class 150, Class 300, Class 600, Class 900, Class 1500

Piping Connection Flange Face: Raised Face

Process Connection Flange Size: 1/2" to 4"

Process Connection Flange Rating: Class 150, Class 300, Class 600, Class 900, Class 1500

Process Connection Flange Face: Raised Face

Quill Opening: 45° angle, 90° angle (Straight), Holes Along Pipe

Flow Direction Stamp: Into back wall of pipe, Into 45° or holes along pipe

For more information please see the catalog page in the document section.

Specifications

Brand

Piping Connection Flange Size

  • 1" - 1" NPS
  • 1.25" - 1-1/4" NPS
  • 1.5" - 1-1/2" NPS
  • 1/2" - 1/2" NPS
  • 2" - 2" NPS
  • 3" - 3" NPS
  • 3/4" - 3/4" NPS
  • 4" - 4" NPS

Process Connection Flange Class ASME B16.5

  • 150#RF - Class 150 Raised Face Flange
  • 1500#RF - Class 1500 Raised Face Flange
  • 300#RF - Class 300 Raised Face Flange
  • 600#RF - Class 600 Raised Face Flange
  • 900#RF - Class 900 Raised Face Flange

Process Connection Flange Class Per ASME B16.5

  • 150#RF - Class 150 Raised Face Flange
  • 1500#RF - Class 1500 Raised Race Flange
  • 300#RF - Class 300 Raised Face Flange
  • 600#RF - Class 600 Raised Face Flange
  • 900#RF - Class 900 Raised Face Flange

Process Connection Flange Size

  • 1" - 1" NPS
  • 1.25" - 1-1/4" NPS
  • 1.5" - 1-1/2" NPS
  • 1/2" - 1/2" NPS
  • 2" - 2" NPS
  • 3" - 3" NPS
  • 3/4" - 3/4" NPS
  • 4" - 4" NPS

Process Flow Orientation

  • G - Into Back Wall of Pipe
  • L - Into 45° or Holes Along Pipe

Quill "A" Dimension (Inches)

  • Determined by Customer (Min. 3")

Quill "U" Dimension (Inches)

  • Determined by Customer

Quill Material

  • 316 & 316L Stainless Steel
  • A105 - A105 Carbon Steel
  • HAC - Hastelloy C-276
  • LF2 - A350 LF2 Carbon Steel
  • Other - Consult Factory

Quill Opening

  • 45 - 45° Angle
  • 90 - 90° Angle
  • HD - Holes Along Pipe

Quill Pipe Size

  • AA - 1/2" Sch 80, 0.840" O.D., 0.546" I.D.
  • AB - 1/2" Sch 160, 0.840" O.D., 0.446" I.D.
  • BA - 3/4" Sch 80, 1.050" O.D., 0.742" I.D.
  • BB - 3/4" Sch 160, 1.050" O.D., 0.614" I.D.
  • CA - 1" Sch 80, 1.315" O.D., 0.957" I.D.
  • CB - 1" Sch 160, 1.315" O.D., 0.614" I.D.
  • DA - 1-1/4" Sch 80, 1.660" O.D., 1.469" I.D.
  • DB - 1-1/4" Sch 160, 1.660" O.D., 1.160" I.D.
  • EA - 1-1/2" Sch 80, 1.900" O.D., 1.500" I.D.
  • EB - 1-1/2" Sch 160, 1.900" O.D., 1.338" I.D.
  • FA - 2" Sch 80, 2.375" O.D., 1.939" I.D.
  • FB - 2" Sch 160, 2.375" O.D., 1.687" I.D.
  • GA - 3" Sch 80, - 3.500" O.D., 2.900" I.D.
  • GB - 3" Sch 160, 3.500" O.D., 2.626" I.D.
  • HA - 4" Sch 80, 4.500" O.D., 3.826" I.D.
  • HB - 4" Sch 160, 4.500" O.D., 3.438" I.D.
