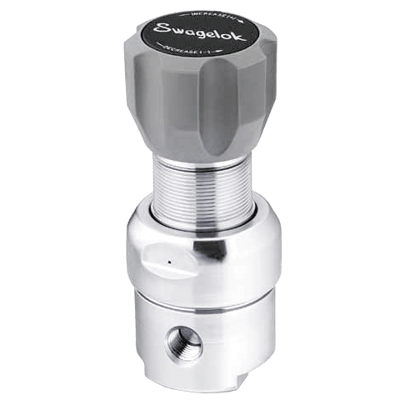

KPB Series Medium to High Pressure Regulator
Brand: Swagelok CompanyThe KPB series provides back-pressure control in gas or liquid applications.
This compact and lightweight regulator provides an ideal pressure-control solution within high-density compact OEM equipment, as well as other applications.
Features- Integral high-pressure overrange protection
- Lightweight, compact design
- Pressure Control Range: psig: 0 to 4,000 (bar: 0 to 275, kPa: 0 to 27,580)
- Maximum Operating Temperature:
- 80°C (176°F) with PCTFE
- 200°C (392°F) with PEEK
- Ports: 1/4" Female NPT
- Actuator: Knob, Antitamper nut
- Materials of Construction:
- Enclosure: 316 Stainless Steel
- Seat: PCTFE, PEEK
- Seal: PCTFE, PEEK
- Stem: 316 Stainless Steel
Specifications
Brand
Actuator Type
- 316 Stainless Steel Anti-Tamper Nut
- Knob
Diaphragm Material
- Alloy X-750 (Inconel)
Enclosure, Body Material
- 316 Stainless Steel
Flow Rate
- 0.06 Cv
- 0.20 Cv
Media
- Gas
- Liquids & Gases
Mounting
- None
- Panel
NPT Connection
- 1/4" NPT Female
Piston Material
- 316 Stainless Steel
Pressure Range
- bar: 0 to 275
- kPa: 0 to 27,579
- psig: 0 to 4,000
Process Temperature
- 80° to 200° C (176° to 392° F)
Seat / Seal Material
- PCTFE
- PEEK
- PTFE
Special Cleaning & Packaging
- ASTM G93 Level E-Cleaned
Stem Material
- 316 Stainless Steel
Supply Pressure - Maximum
- bar: 0 to 275
- kPa: 0 to 27,579
- psig: 0 to 4,000
